With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

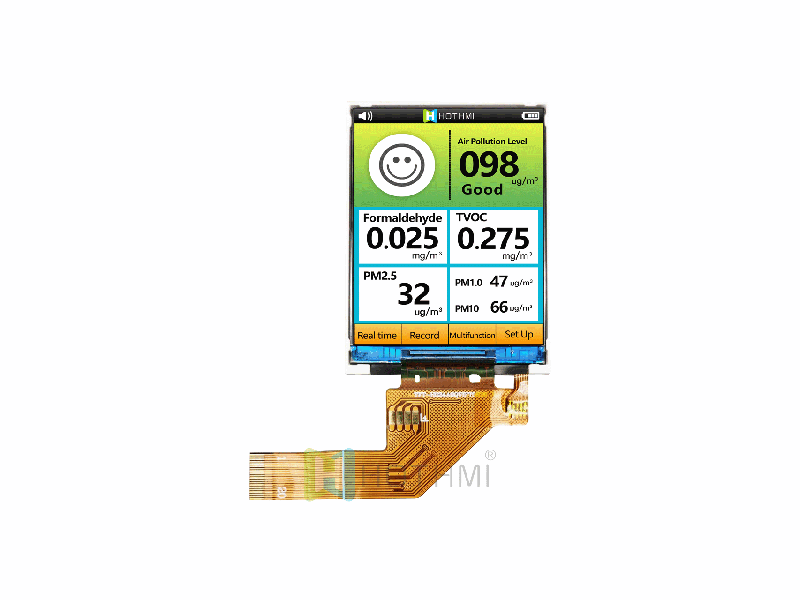

| 2.4-inch color TFT display/plug-in FPC/240x320 resolution/MCU interface/ST7789 controlle TFT-H024A24QVTST3N37 | TFT | 240x320 |
|
42.72x60.26x2.5 | 2.4 | 2.4 | 36.72x48.96 | U40/D20/L45/R45 | 350cd/m2 | FPC-37 pin | MCU | Anti-static ESD 8KV | -20~70℃ | +2.8 V | ST7789 | |
| 2.4-inch TFT LCD module display/IPS full-view color screen/MIPI interface/JD9852 controller TFT-H024A9QVIFT8N20 | TFT | 240x320 |
|
45.52x59.86x2.2 | 2.4 | 2.4 | 36.72x48.96 | IPS | 800cd/m2 | FPC-20 pin | MIPI | Anti-static ESD 8KV | -20~70℃ | +2.8 V | JD9852 | |
| Color 3.5 inch TFT LCD module display/with capacitive touch screen /LVDS/T.B.D controller TFT-H035A26VGIST8C30 | TFT | 640x480 |
|
76.9x63.9x4.8 | 3.5 | 3.5 | 70.8x52.56 | IPS | 850cd/m2 | FPC-30 pin | LVDS | Anti-static ESD 8KV | -30~80℃ | 3.3V | T.B.D<TFT>,GT911<CTP> | |
| 4.3-inch 480x800 color capacitive touch TFT LCD display / ST7701S controller / IPSTFT TFT-H043B15WVIST3C45 | TFT | 480x800 |
|
62.66x102.97x3.85 | 4.3 | 4.3 | 56.16x93.6 | IPS | 350cd/m2 | FPC-45 pin | RGB | IPS | -20~70℃ | 1.8V~2.8V | ST7701S<TFT>,GT911<CTP> | |
| 4.3-inch IPS 480x800 color TFT LCD display / ST7701S controller TFT-H043B15WVIST4N45 | TFT | 480x800 |
|
60.86x102.57x2.3 | 4.3 | 4.3 | 56.16x93.6 | IPS | 450cd/m2 | FPC-45 pin | RGB | Anti-static ESD 8KV | -20~70℃ | 1.8V~2.8V | ST7701S | |
| 7.0-inch 1024x600 capacitive touch TFT display/T.B.D controller/IPS full-view TFT-H070A20WSIFT7C50 | TFT | 800x1280 |
|
164.9X100.0X5.25 | 7.0 | 7.0 | 154.21x85.92 | IPS | 700cd/m2 | FPC-50 pin | LVDS | Anti-static ESD 8KV | -20~70℃ | +3.3 V | T.B.D | |
| 7.0-inch 1024x600 dot matrix IPS full-view color display / FPC plug-in / T.B.D controller TFT-H070A22WSIJD8N40 | TFT | 1024x600 |
|
164.9X100.0X3.5 | 7.0 | 7.0 | 154.21x85.92 | IPS | 800cd/m2 | FPC-40 pin | LVDS | Anti-static ESD 8KV | -20~70℃ | +3.3 V | T.B.D | |
| 7.0 inch 1200x1920 TFT LCD display module/ IPS full-view color TFT TFT-H070D12ZFIHX3N40 | TFT | 800x1280 |
|
99.75X161.6X2.2 | 7.0 | 7.0 | 94.5X151.20 | IPS | industrial control systems, portable electronic devices | FPC-40 pin | MIPI | IPS | -20~70℃ | +3.3 V | HX8279 | |
| 8.0 inch TFT LCD 800X600 resistive touch display /FPC plug-in TFT-H080A1SVTHX3N50 | TFT | 800x600 |
|
182.9X141.0X7.0 | 8.0 | 8.0 | 162.0X121.5 | 12H | 300cd/m2 | TTL | Anti-static ESD 8KV | -20~70℃ | 3.3 V | HX8264+HX8696 | ||
| 8.0 inch800x1280 dot matrix color screen module/FPC plug-in/JD9365 controlle TFT-H080A5HDIFT6N40 | TFT standard display | 800x1280 |
|
800x1280 px | 8.0 | 8.0 | 107.64X172.22 | Full View (U80/D80/R80/L80) | 600cd/m2 | FPC-40 pin | MIPI | Anti-static ESD 8KV | -20~70℃ | +3.3 V | JD9365 |
