COG display: not only thin, but also low power consumption.
COG display is the first batch of Xinhongtai HOTLCD since its successful development and production in 2004. It has been the main product of the company for 15 years and is also a kind of LCD module favored by many customers.
So far, hundreds of standard COG displays ranging from 64*48 dot matrix to 320*240 dot matrix have been developed for customers to choose. In particular, there are more than one hundred different sizes of 128*64 dot matrix.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Point spacing mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

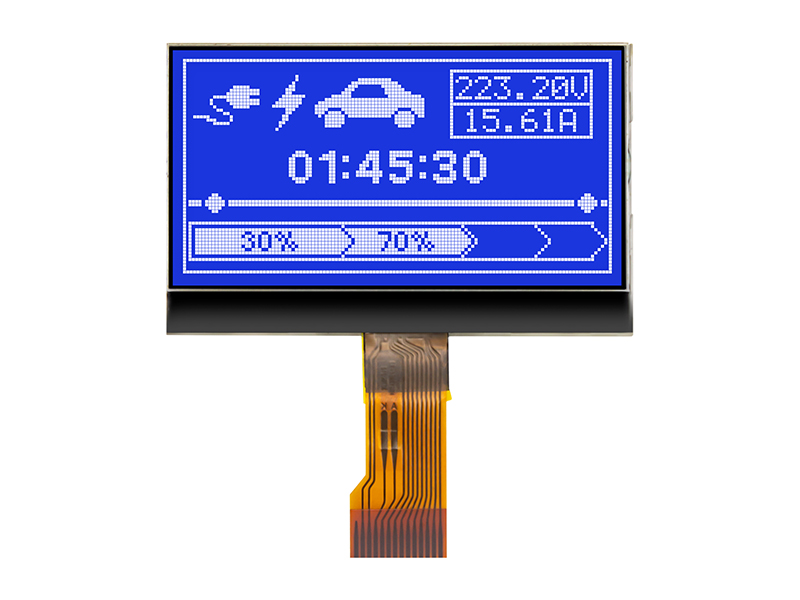

| 128x64 1.8"Blue Graphic COG Display with ST7567 Controller-Arduino HTG12864-20R-25W-28C10-V02 | COG | 128x64 |
|
53.2x37.8x2.8 | 49.20x27.0 | 40.92x24.28 | 0.32x0.38 | 6H | 28PIN | SPI | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7567 | ||

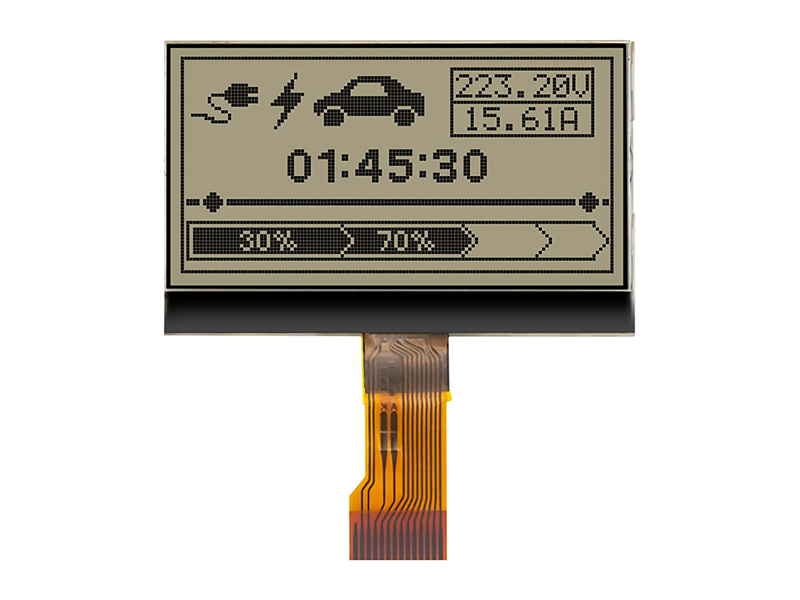

| 128x64 1.8"STN(+) Graphic LCD Display with ST7567 Controller HTG12864-20R-11Y-28C10-V02 | COG | 128x64 |
|
53.2x37.8x2.8 | 49.20x27.0 | 40.92x24.28 | 0.32x0.38 | 6H | 28PIN | SPI | 6H | -30~80℃ | +3.3V | ST7567 | ||
| 1.8"128x64 Graphic LCD for Instrument HTG12864-20R-11W-28C10-V02 | COG | 128x64 |
|
53.2x37.8x2.8 | 49.20x27.0 | 40.92x24.28 | 0.32x0.38 | 6H | 28PIN | SPI | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7567 | ||
| 1.8 inch 128x64 DFSTN(-) GraphicCOG with ST7567 Controller HTG12864-20R-41W-28C10-V02 | COG | 128x64 |
|
53.2x37.8x2.8 | 49.20x27.0 | 40.92x24.28 | 0.32x0.38 | 6H | 28PIN | SPI | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7567 | ||

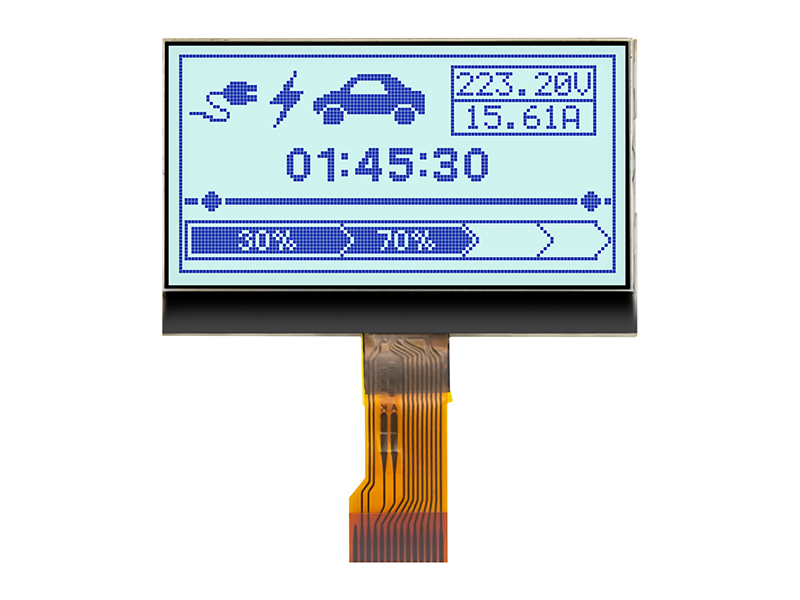

| 1.8 inch 128x64 FSTN(+) Graphic LCD Display with ST7567 Controller HTG12864-20R-31W-28C10-V02 | COG | 128x64 |
|
53.2x37.8x2.8 | 49.20x27.0 | 40.92x24.28 | 0.32x0.38 | 6H | 28PIN | SPI | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7567 | ||
| 128x64 Graphic LCD Display with Yellow Green Backlight and ST7567 Controller HTG12864-20R-01Y-28C10-V02 | COG | 128x64 |
|
53.2x37.8x2.8 | 40.92x24.28 | 0.32x0.38 | 6H | 28PIN | SPI | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7567 | |||
| COG LCD Screen 128x64 | FSTN+ LCD Display 5.0V HTG12864-82-35S-14C10-V02 | COG | 128x64 |
|
71.4x44.7x6.2 | 66.7x35 | 63.98x31.98 | 0.5x0.5 | 12H | 0.5x0.5 | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | ST7567 | ||
| COG LCD Panel 128x64 | 12864 STN- blue LCD Display 5.0V HTG12864-82-25W-14C10-V02 | COG | 128x64 |
|
71.4x44.7x6.2 | 66.7x35 | 63.98x31.98 | 0.5x0.5 | 12H | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | ST7567 | |||
| COG LCD Display 128x64 | 128*64 STN+ Yellow Green LCD 5.0V HTG12864-82-11Y-14C10-V02 | COG | 128x64 |
|
71.4x44.7x6.2 | 66.7x35 | 63.98x31.98 | 0.5x0.5 | 12H | FPC-14PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | ST7567 | ||
| COG LCD Display module 12864 | 128*64 STN+ LCD panel 5.0V HTG12864-82-11W-14C10-V02 | COG | 128x64 |
|
71.4x44.7x6.2 | 66.7x35 | 63.98x31.98 | 0.5x0.5 | 12H | 0.5x0.5 | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | ST7567 |
