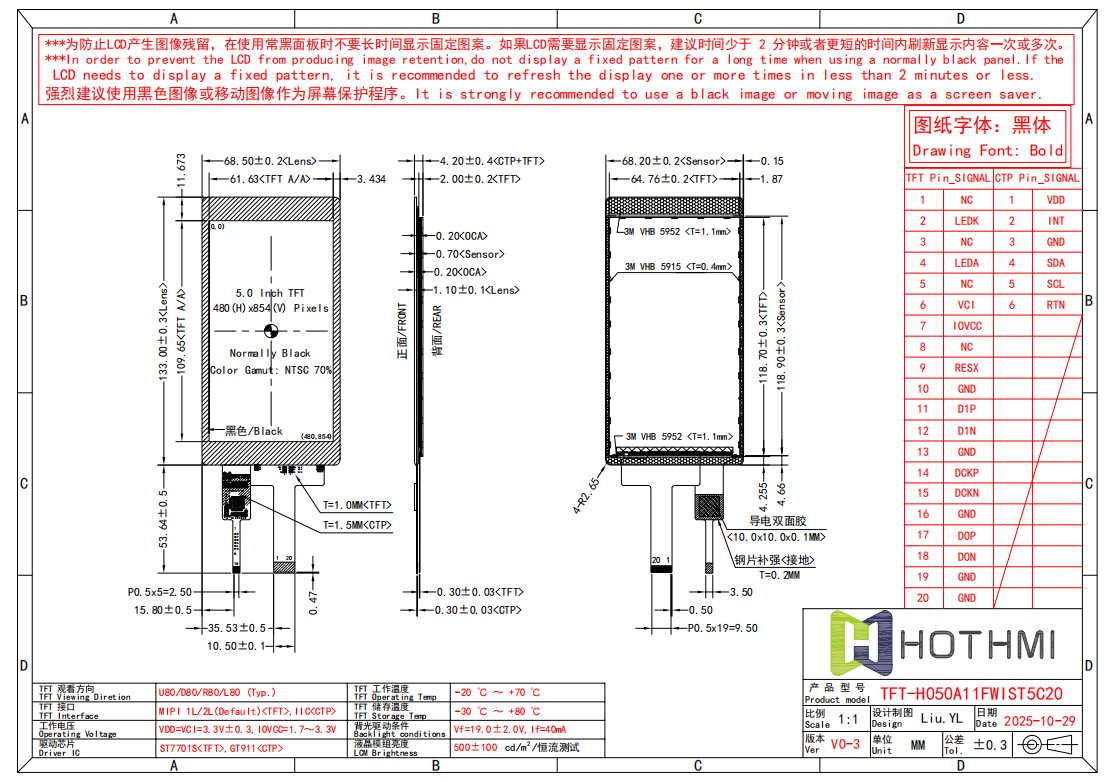

Product type:TFT Display
Show contents:480x854
Outline size(mm) :68.5x133.0x4.2
Size of View Window(mm):5.0
Display size(mm) :5.0
Effective size(mm):61.63x109.65
Product application:industrial control systems, portable electronic devices
Visual angle:IPS
Backlight type or brightness:500cd/m2
Connection PIN Number:20 PIN
Interface mode:MIPI
Special instructions:Anti-static ESD 8KV
Working temperature:-20~70℃
Power supply voltage:+3.3V
Driver chip model:ST7701S
Harness the power and clarity of this 5.0-inch TFT LCD for your next-generation instrumentation and portable electronic devices. While our other models feature higher resolutions, this robust 5.0-inch TFT LCD delivers reliable performance with a 320x480 (HVGA) pixel array, driven by an ST7365P IC and a versatile MCU interface. The display's exceptional 500 cd/m2 brightness and IPS full viewing angle technology ensure a clear, vibrant image from any perspective, even in challenging lighting conditions.
Engineered for durability, this 5.0-inch TFT LCD is built to withstand an operating temperature range of -20°C to +70°C and features ESD protection up to 8kV. It coupled with a 40-pin FPC connection and a low 3.3V supply voltage, make it an ideal, space-saving solution. For projects demanding a proven and resilient display, this specific 5.0-inch TFT LCD offers outstanding value and performance. Discover the ideal blend of durability and visual quality with this versatile 5.0-inch TFT LCD.
