Product type：COG
Show contents：9x2

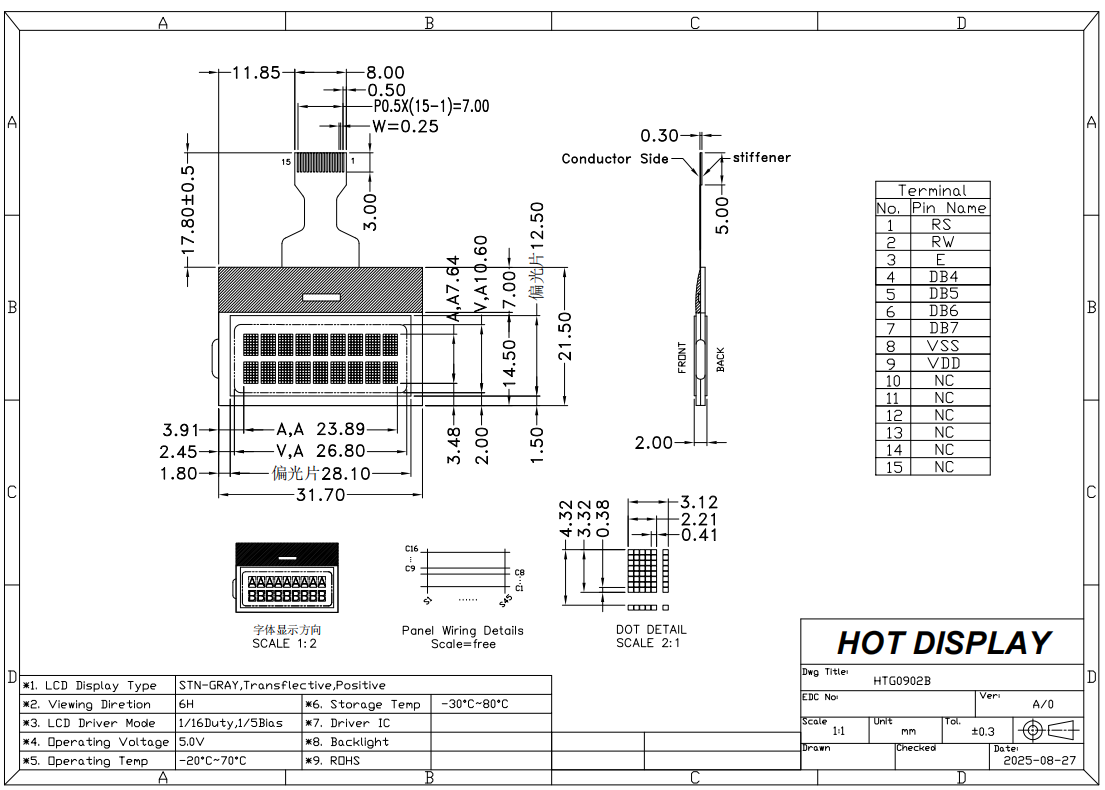

Outline size(mm) ：31.7x21.5x2
Size of View Window(mm)：26.8x10.6
Display size(mm) ：23.89x7.64
Product application：Instruments
Visual angle：IPS
Connection PIN Number：15PIN
Interface mode：MCU
Special instructions：IPS
Working temperature：-20~70℃
Power supply voltage：5.0V

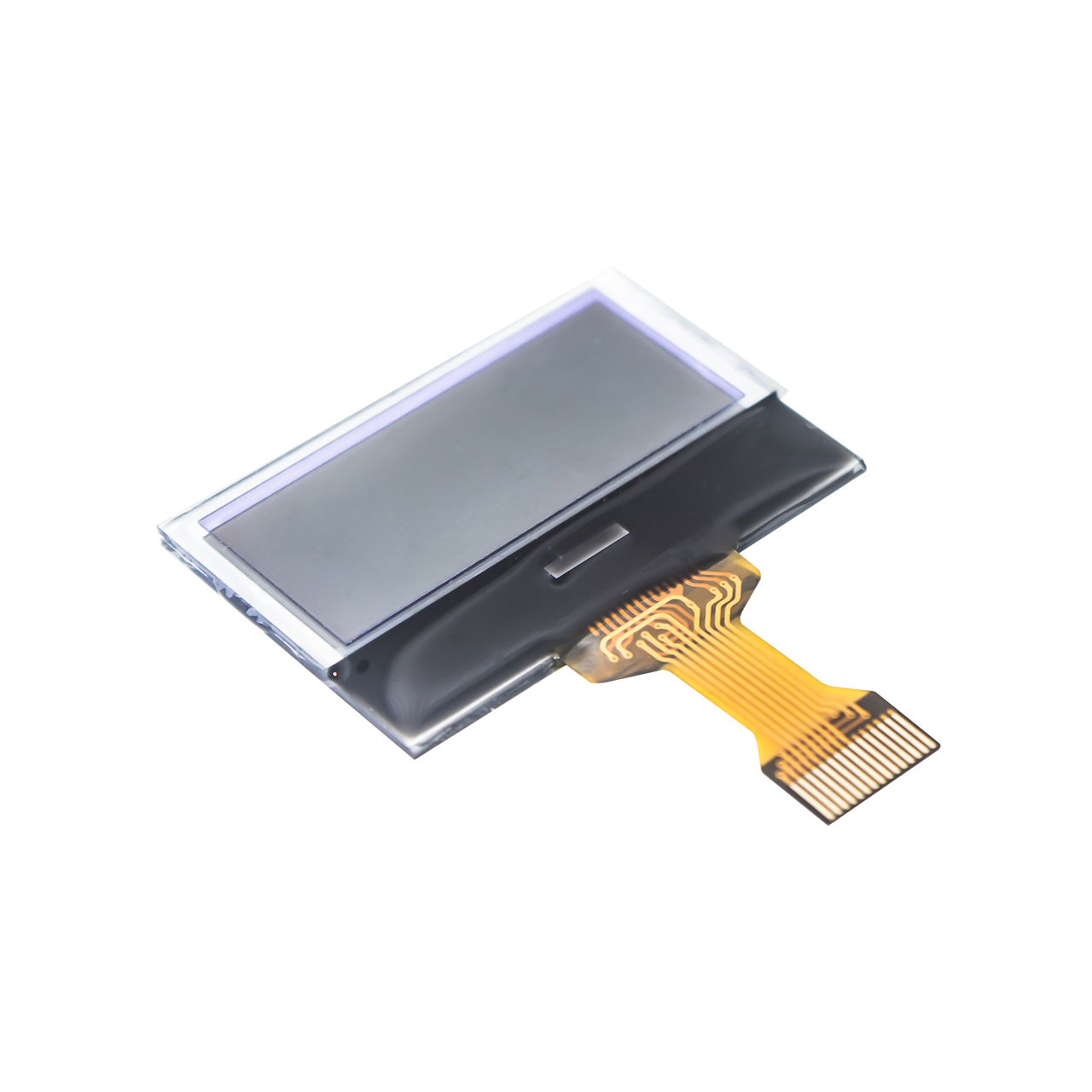

Our 9x2 COG LCD Display is engineered for reliability and clarity in demanding applications. This 9x2 COG LCD Display utilizes advanced Chip-on-Glass (COG) technology, integrating the driver IC directly onto the glass for a compact, robust, and ultra-thin design perfect for space-constrained instrumentation.
The display offers exceptional readability with a high-contrast FSTN LCD (or STN LCD) panel and a bright white LED backlight, ensuring clear visibility under various lighting conditions. The transflective LCD technology provides optimal performance in both low-light and bright, sunny environments.
Designed for industrial use, this wide temperature range LCD operates reliably from -20°C to +70°C, making it suitable for harsh environments. With an 8KV ESD protection rating, it offers enhanced durability against electrostatic discharge.
