128x64 1.8"Blue Graphic COG Display with ST7567 Controller-Arduino

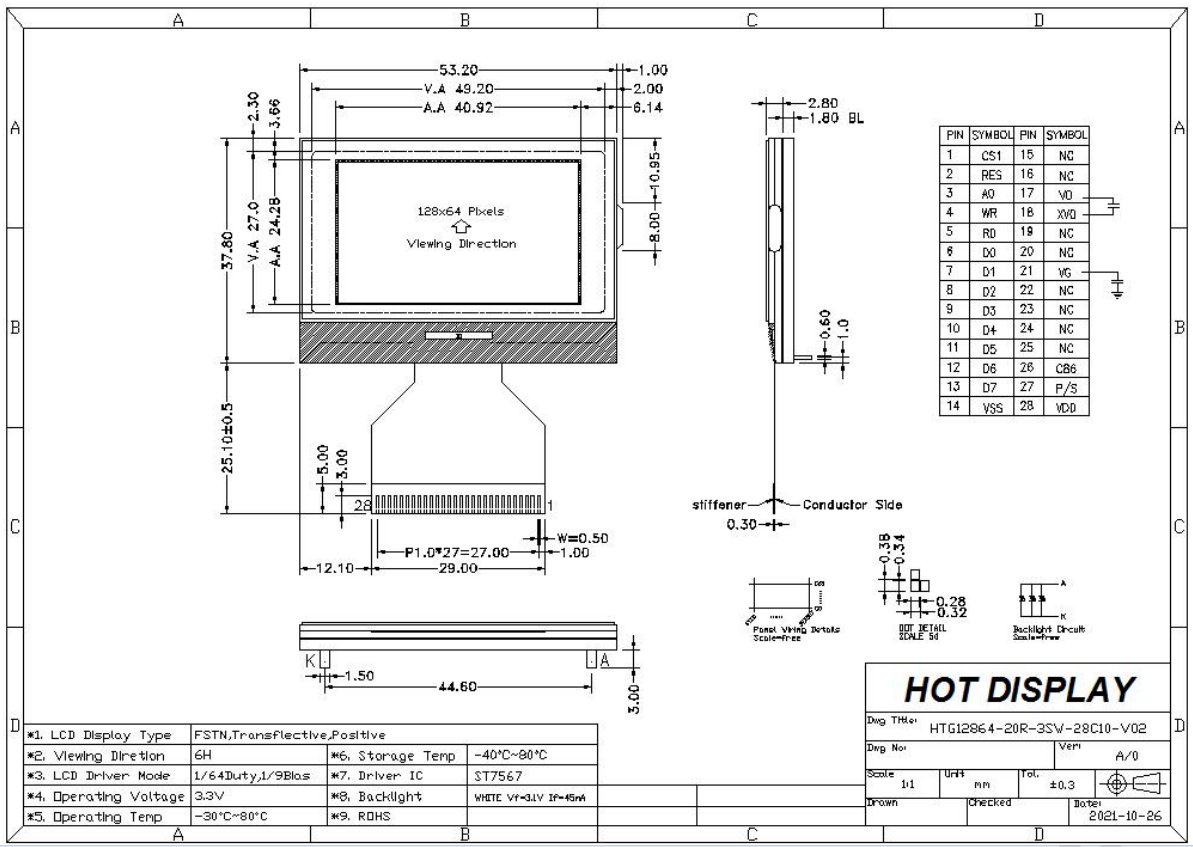

HTG12864-20R-25W-28C10-V02 is a 1.8-inch, 128x64 pixel, white background monochrome graphic dot matrix COG (chip on glass) LCD display module, which meets the needs of various embedded applications with its high integration and stable performance. Its core is equipped with ST7567 controller, with efficient interface design, ensuring easy connection and control with mainstream microcontrollers such as 8051, PIC, AVR, Arduino, ARM and Raspberry Pi. The module adopts a compact COG structure and comes standard with FPC connection (optional ZIF connector), which is convenient for users to quickly install, disassemble and integrate into the driver board. At the same time, it has high contrast, wide operating temperature range and built-in white LED backlight to ensure stable operation in various environments.

The significant advantage of this module is its innovative full-transparent optical design. The backlight can be fully transparent, making the display bright and good for viewing. Of course, this fully transparent mode is not suitable for use without backlight. However, as a member of the dot matrix COG product line, we provide a variety of display effects, including gray background blue text, white background black text, black background white text and other combinations, and support STN (+/-), FSTN (+), DFSTN (-) and other display modes. These modes are semi-transparent and semi-reflective, and can still be read smoothly by viewers through reflection in an environment without backlight. Users can also flexibly choose 6:00 or 12:00 as the best viewing angle according to the installation direction to optimize the visual experience.

HTG12864-20R-01Y-28C10-V02 and its series products are widely used in embedded systems, industrial equipment, security monitoring, medical equipment and various handheld devices. In addition to standard FPC connections, manufacturers can also provide customized connection solutions such as metal PIN pins or zebra strips according to user-specific needs to meet different integration requirements. All products strictly comply with RoHS environmental standards and are cost-effective graphic display solutions that combine compact structure, strong compatibility, excellent all-weather display capabilities and flexible customization options.
