Common Categories Of LCD Screens And Customized Services

Common LCD categories

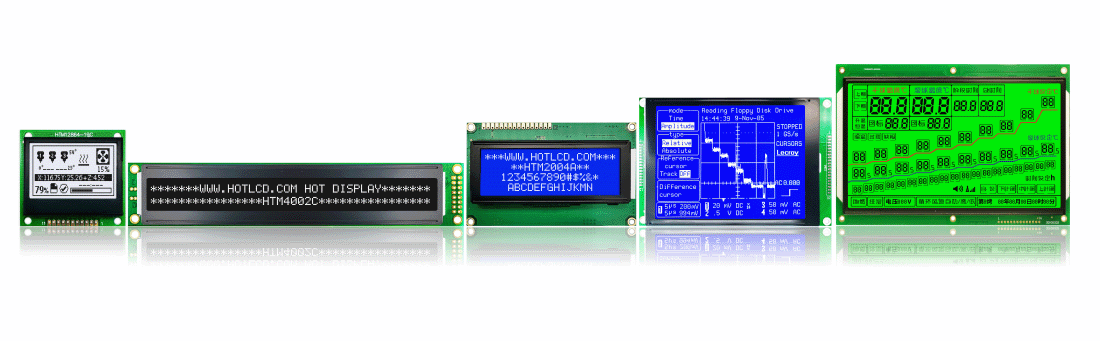

The categories of LCD monochrome displays we provide include: character dot matrix LCD, graphic dot matrix LCD, COG and segment code LCD.

Our Customized Services

Size and Dot Count: Glass size and dot count can be customized according to customer requirements.

Active Area: Defines the size and location of the area on the screen where the image is actually displayed.

Total Module Thickness: The total thickness of the module can be controlled by adjusting the backlight, glass, PCB, and other factors.

Customized Bezel: Customize the bezel material, size, and width of all four sides. This is required for achieving a "full screen" or for embedding into a specific structure.

Polarizer Orientation: Change the angle of the polarizer to accommodate different viewing angles (for example, 0°, 45°, 90°, and 135° are commonly available) Mode.

Connector Customization: Easily modify any connector on the display to meet your application requirements. Our engineers can solder pin headers, box headers, right-angle connectors, and any other connectors your display may require. Position the FPC (flexible printed circuit) connector on the top, bottom, left, or right side, and define its protrusion length to facilitate board layout and wiring.

PCB Modification: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to perfectly suit your application.

Backlight Color Customization: Module backlighting is available in a variety of combinations: no backlighting or with yellow-green, blue, white, amber, red, or RGB backlighting, with up to 48 different effects. For a more detailed description of the display effects achieved by combining different modes, please click the link: LED Backlight & LCD Colors.

Font Customization: A variety of font libraries are available, including English/Japanese, Western European, Eastern European, Scandinavian European, Cyrillic (Russian), Hebrew/Arabic, and more.

Cable Customization: Adjust cable length, position, and pinout, or add additional connectors. Get a precisely designed cable solution that keeps your connections streamlined and secure.
